Soláthraímid slabhra dhá chineál anseo. Is é an chéad cheannSlabhraí Muileann Siúcra Aicme Teilgthe, and the second one is Scaoil-slabhraí príomhiompróra cána frogáilte le haghaidh iompróirí.They are in different shapes and with different functions, but both of them are used in sugar industry. Please find their dimensions as below.

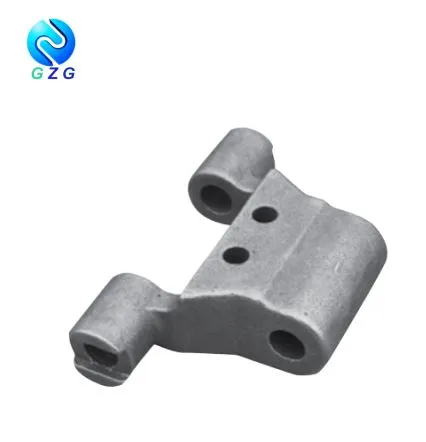

Slabhraí Muileann Siúcra Aicme Teilgthe (2 chineál)
 | ||||||||||||
| Slabhra Níl. | páirc | Toisí | Meáchan | |||||||||
| L | T | H | G | A | B | C | D | E | F | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg/M | |
| 5174E4 | 60.0 | 28.8 | 10.0 | 18.9 | 16.3 | 61.5 | 139.5 | 63.7 | 14.0 | 9.6 | 25.0 | 17.0 |
 | ||||||||||||
| Slabhra Níl. | páirc | Toisí | Meáchan | |||||||||
| L | T | H | G | A | B | C | D | E | F | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg/M | |
| 907E51 | 80.5 | 38.1 | 10.0 | 18.3 | 23.9 | 57.0 | 142.0 | 60.0 | 16.0 | 16.0 | / | 19.8 |
Laghdaigh-slabhraí iompróra cána frogáilte le haghaidh iompróirí (5 chineál)
 | |||||||||||
| Slabhra Níl. | páirc | Toisí | deiridh neart | Meáchan | |||||||
| A | B | F | S | C | E | G | D | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/M | |
| 6"-1 | 152.4 | 44.5 | 38.1 | 55.5 | 30.0 | 76.2 | 14.0 | 146.5 | 28.5 | 1000.0 | 28.7 |
| 6"-2 | 152.4 | 50.0 | 40.0 | 80.0 | 40.0 | 76.4 | 17.0 | 156.0 | 38.9 | 1000.0 | 40.6 |
| 9"-1 | 228.6 | 50.8 | 38.1 | 80.0 | 40.0 | 100.0 | 17.0 | 152.0 | 39.0 | 1000.0 | 35.0 |
| 9"-2 | 228.6 | 75.0 | 50.0 | 93.0 | 40.0 | 95.0 | 17.0 | 201.0 | 39.0 | 1000.0 | 54.1 |
 | |||||||||||
| Slabhra Níl. | páirc | Toisí | deiridh neart | Meáchan | |||||||
| A | B | F | S | C | E | G | D | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/M | |
| 250 | 250.0 | 56.0 | 25.0 | 110.0 | 25.0 | / | / | 160.0 | 47.0 | 2010.0 | 61.7 |
Cast Class Sugar Mill Chain Pacáiste á Thaispeáint (mar shampla)
Normally we don't use carton box to pack Slabhraí Muileann Siúcra Aicme Teilgthe, we just use transparent bag and plywood case for packing. Kindly let us know if you have some special requirements of chain packing.
Tacaíocht iompair
Braitheann an bealach iompair a roghnaíonn cliant ar an ordú. Tá an chuid is mó de na cliaint gald a roghnú sainráite le haghaidh ordú samplach, agus loingseoireachta farraige le haghaidh ordú mór.
Seol ríomhphost chugainn má tá tú á lorg Cast Class Sugar Mill Chains and Drop-froged main cane carrier chains for conveyors, táimid an-sásta d'fhadhb a réiteach.
Clibeanna Te: slabhraí muileann siúcra teilgthe, an tSín, monaróirí, soláthraithe, monarcha
