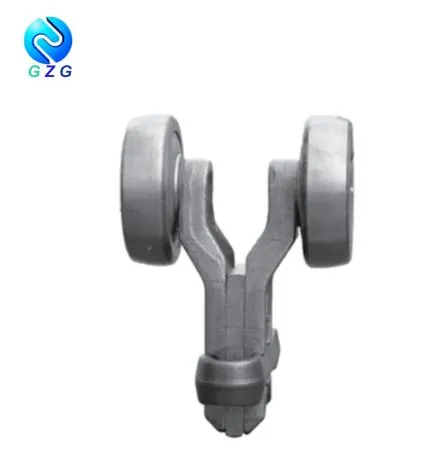

Buail-Tralaí brionnaithe agus Tralaí Droim ar aisIs ceangal iad freisin de shlabhraí gan abhann le haghaidh iompróirí. Soláthraímid tralaí agus tralaí cúlaithe araon. Is iad na príomhchineálacha iad X348, X458, X678, XT100, XT160, S348, 678. Rollaíonn barr an tralaí i dtreoir, agus é ag bun an slabhra iompair a d'fhéadfadh fuinneamh cinéiteach a sheachadadh. Cáilítear tralaí titim GZG-chun cáilíochtaí a thaispeáint mar lódáil ard, foirfeacht faoileoireacht mhín, méid caighdeánach.
Drawing and dimensions of Buail-Tralaí brionnaithe
 | |||||||||||
| Slabhra Níl. | Toisí | Meáchan | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| mm | mm | mm | mm | céime | mm | mm | mm | mm | mm | Kg/Tacar | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| Slabhra Níl. | Toisí | Meáchan | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | céime | mm | mm | mm | mm | mm | mm | Kg/Tacar | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| Slabhra Níl. | Toisí | Meáchan | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | céime | mm | mm | mm | mm | mm | mm | Kg/Tacar | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |
Drawing and dimensions of Buail-Cúl Tralaí brionnaithe
 | ||||||||
| Slabhra Níl. | Toisí | Meáchan | ||||||
| P | H | A | F | T | C | D | ||
| mm | mm | mm | mm | mm | mm | mm | Kg/Tacar | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |
Ceangaltán le haghaidh Trolley
 | ||||||||||
| Slabhra Níl. | Toisí | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| Slabhra Níl. | Toisí | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| Slabhra Níl. | Toisí | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |
