Mar chuid de tharchur na meaisíní,Sprocket Roth Pláta 100 Ilphléacsa úsáidtear go forleathan i dtionscail éagsúla, a bhfuil ar chineál an sprocket d'fhéadfadh a threalmhú le slabhra sorcóir a fháil comhar foirfe i tarchur meaisín.
Cad a d'fhéadfadh GZG ábhar a sholátharPlate Wheel Sprocket 100 Multiplex Tá C1045 agus SS304
Cóireáil Dromchla: Ocsaíd Dhubh, Zinc Plating, Péinteáil, nicil plating
Próiseas: Gaibhniú, Caitheamh aimsire, Meaisínithe beachtais, Cóireáil dromchla, Cigireacht dhian deiridh

Soláthraímid simplex, déphléacsacha, tríphléacsacha agus ilphléacssprockets roth pláta. Please feel free to contact us if you can't find the technial data as below, we are glad to help. And we'll also to help you to make a suitabl drawing so we could confirm teh order soon.
Dimensions of Plate Wheel Sprocket 100 Multiplex
| Sprocket | mm | ||||||||||
| Ga fiacail r3 | 33.5 | |||||||||||
| Leithead ga C | 4 | |||||||||||
| Leithead fiacail B1 | 17.7 | |||||||||||
| Leithead fiacail b1 | 17.1 | |||||||||||
| Leithead fiacail B2 | 52.9 | |||||||||||
| Slabhra | mm | |||||||||||
| páirc | 31.75 | |||||||||||
| Leithead inmheánach | 19.05 | |||||||||||
| Roller Φ | 19.05 | |||||||||||
| z | de | dp | SIMPLEX | DUPLEX | ||
| D1 | KG | D2 | KG | |||
| 8 | 96.0 | 82.96 | 16 | 20 | ||
| 9 | 106.5 | 92.84 | 16 | 20 | ||
| 10 | 117.0 | 102.74 | 16 | 20 | ||
| 11 | 127.0 | 112.68 | 20 | 25 | ||
| 12 | 137.0 | 122.68 | 20 | 25 | ||
| 13 | 147.5 | 132.65 | 20 | 25 | ||
| 14 | 157.6 | 142.68 | 20 | 25 | ||
| 15 | 167.7 | 152.72 | 20 | 25 | ||
| 16 | 177.7 | 162.75 | 20 | 30 | ||
| 17 | 187.7 | 172.78 | 20 | 2.96 | 30 | |
| 18 | 197.8 | 182.85 | 20 | 3.28 | 30 | |
| 19 | 207.9 | 192.91 | 20 | 30 | ||
| 20 | 217.9 | 202.98 | 20 | 30 | ||
| 21 | 228.0 | 213.04 | 25 | 4.62 | 30 | |
| 22 | 238.1 | 223.11 | 25 | 30 | ||
| 23 | 248.2 | 233.17 | 25 | 30 | ||
| 24 | 258.3 | 243.23 | 25 | 30 | ||
| 25 | 268.4 | 253.33 | 25 | 30 | ||
| 26 | 278.4 | 263.40 | 30 | 30 | ||
| 27 | 288.5 | 273.48 | 30 | 30 | ||
| 28 | 298.5 | 283.56 | 30 | 30 | ||
| 29 | 308.6 | 293.65 | 30 | 30 | ||
| 30 | 318.7 | 303.75 | 30 | 30 | ||
| 31 | 328.8 | 313.85 | 30 | 30 | ||
| 32 | 338.9 | 323.91 | 30 | 30 | ||
| 33 | 349.0 | 334.01 | 30 | 30 | ||
| 34 | 359.1 | 344.10 | 30 | 30 | ||
| 35 | 369.2 | 354.20 | 30 | 30 | ||
| 36 | 379.2 | 365.30 | 30 | 30 | ||
| 37 | 389.3 | 374.39 | 30 | 30 | ||
| 38 | 399.4 | 384.49 | 30 | 30 | ||
| 39 | 409.5 | 394.59 | 30 | 30 | ||
| 40 | 419.6 | 404.66 | 30 | 30 | ||
| 41 | 430.7 | 414.78 | 30 | 30 | ||
| 42 | 440.8 | 424.88 | 30 | 30 | ||
| 43 | 450.9 | 434.97 | 30 | 30 | ||
| 44 | 461.0 | 445.07 | 30 | 30 | ||
| 45 | 471.1 | 455.17 | 30 | 30 | ||
| 46 | 481.2 | 465.26 | 30 | 30 | ||
| 47 | 491.3 | 475.36 | 30 | 30 | ||
| 48 | 501.4 | 485.46 | 30 | 30 | ||
| 49 | 511.5 | 495.55 | 30 | 30 | ||
| 50 | 521.6 | 505.65 | 30 | 30 | ||
| 51 | 531.7 | 515.75 | 30 | 30 | ||
| 52 | 541.8 | 525.84 | 30 | 30 | ||
| 53 | 551.9 | 535.94 | 30 | 30 | ||
| 54 | 562.0 | 546.07 | 30 | 30 | ||
| 55 | 572.1 | 556.16 | 30 | 30 | ||
| 56 | 582.2 | 566.26 | 30 | 30 | ||
| 57 | 592.3 | 576.36 | 30 | 30 | ||
| 58 | 602.4 | 586.45 | 30 | 30 | ||
| 59 | 612.5 | 596.55 | 30 | 30 | ||
| 60 | 622.6 | 606.65 | 30 | 30 | ||
| 62 | 642.8 | 626.87 | 30 | 30 | ||
| 64 | 663.0 | 647.06 | 30 | 30 | ||
| 65 | 673.1 | 657.16 | 30 | 30 | ||
| 66 | 683.2 | 667.26 | 30 | 30 | ||
| 68 | 703.4 | 687.48 | 30 | 30 | ||
| 70 | 723.6 | 707.67 | 30 | 30 | ||
| 72 | 743.8 | 729.90 | 30 | 30 | ||
| 75 | 774.2 | 758.19 | 30 | 30 | ||
| 76 | 784.3 | 768.32 | 30 | 30 | ||
| 80 | 824.7 | 808.72 | 30 | 30 | ||
| 85 | 875.2 | 859.25 | 30 | 30 | ||
| 90 | 925.7 | 909.76 | 30 | 30 | ||
| 95 | 976.2 | 960.28 | 30 | 30 | ||
| 100 | 1026.7 | 1010.79 | 30 | 30 | ||
| 114 | 1168.2 | 1152.26 | 30 | 40 | ||

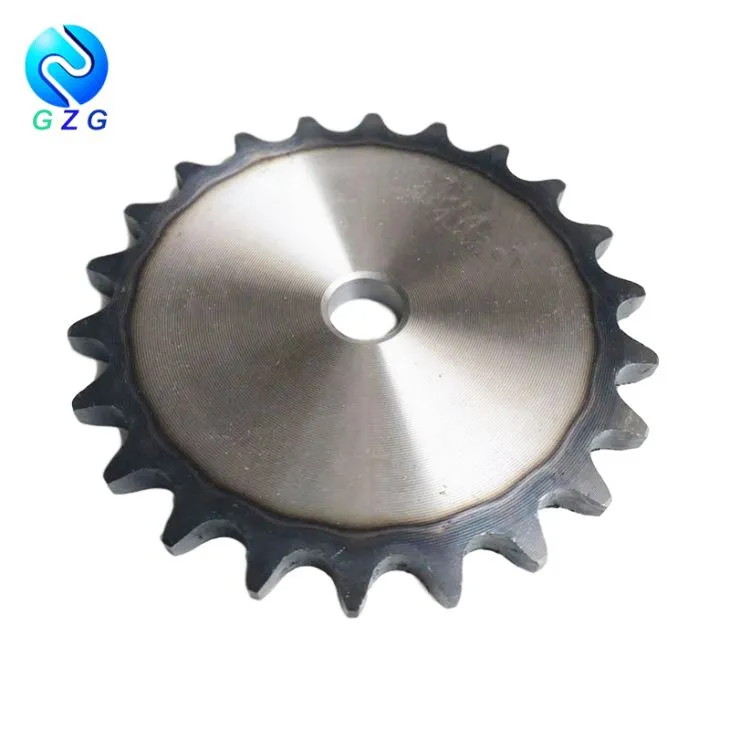

Some pictures of Plate Wheel Sprocket 100 Multiplex
Find some pictures of Plate Wheel Sprocket 100 Multiplex as below. GZG is able to make black surface treatment and teeth harden (HRC 38-45).



Guizhou GZG Transmission Co., Limited was established in 2010. Under years' efforts, we had promoted all kinds of metal processing machinery, introduced various types of testing equipment. Currently, our production capacity to all kinds of machines or parts could catch 300,000 pcs (sets) per year.


Ghlacamar páirt i go leor taispeántais thar lear agus intíre ar nós BVV i Seice agus Canton Fair. Féadfaimid faisnéis taispeántais a nuashonrú ar ár suíomh Gréasáin nó -R-phost a scríobh chuig ár gcustaiméirí rialta agus nua chun an dáta a chur in iúl dóibh. Má tá suim agat inárSprocket Roth Pláta 100 Ilphléacsagus ba mhaith liom é a fheiceáil ar taispeáint, le do thoil scríobh chugainn.


Sprocket Roth Pláta 100 Ilphléacsa chur i mála plaisteach ar leith, a phacáil ansin i gcás sraithadhmaid. Má tá cás amháin róthrom, féadfaimid spás a fhágáil le haghaidh forklift le huaslódáil agus le híoslódáil.


For transportation, we have our own shipping agent that can make CFR or CIF to client's port. We can also make FOB and other transportation terms. Some clients from southeast of Asia could get the products by truck.

Tá tóir ar tháirgí GZG i margaí Oirdheisceart na hÁise, an AE agus SAM. Idir an dá linn, úsáidtear táirgí GZG go forleathan i mianadóireacht, cruach, eitleán, long, agus gach cineál meaisíní.
Is é Barr Cáilíochta, Praghas is Fearr, agus Seirbhís tuisceanach ár bprionsabal, is cuma go bhfuil d'ordú mór nó beag, is é do shástacht ár sásamh.
