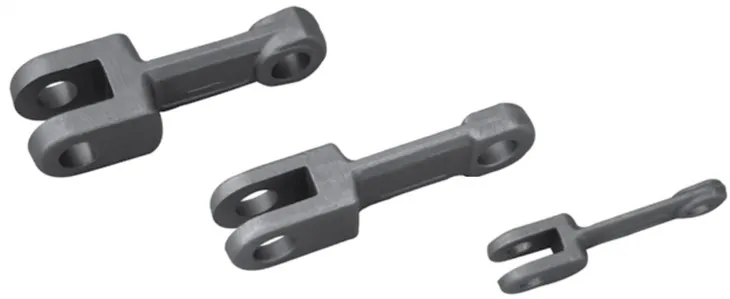

An ceangaltán is tábhachtaí detitim-slabhra brionnaitheIs é an scraper. Tá sé weled ar an slabhra a d'fhéadfadh rudaí a chur in iúl. Tá dhá pholl ar an scraper a úsáidtear chun ceangaltán rubair a nascadh chun damáiste scraper a sheachaint. Maidir le hábhar, soláthraímid 20CrMni (nasc), 40Cr (bioráin) agus Q235 (scraper agus airclip) de ghnáth.
Drawing of Scraper Drop Forging Chain
Dimensions of Scraper Drop Forging Chain for reference
| Slabhra Níl. | páirc | Toisí | deiridh neart | Meáchan | |||||||
| A | B | C | D | E | T | 20CrMnTi | 40Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | Kg/M | |
| 10160B | 101.6 | 24.0 | 8.0 | 36.0 | 14.0 | 9.0 | 6.0 | 90.0 | 100.0 | 130.0 | 3.5 |
| 10160.0 | 101.6 | 30.0 | 13.0 | 36.0 | 14.0 | 14.0 | 9.0 | 120.0 | 150.0 | 200.0 | 3.8 |
| 102.0 | 102.0 | 28.0 | 12.0 | 36.0 | 14.0 | 13.0 | 8.0 | 110.0 | 140.0 | 190.0 | 3.7 |
| 102F | 102.0 | 33.5 | 14.0 | 38.0 | 14.0 | 15.0 | 10.0 | 150.0 | 180.0 | 230.0 | 4.0 |
| 125.0 | 125.0 | 36.0 | 15.0 | 36.0 | 16.0 | 16.0 | 10.0 | 180.0 | 210.0 | 260.0 | 4.8 |
| 14218.0 | 142.0 | 42.0 | 19.0 | 50.0 | 25.0 | 20.0 | 12.0 | 270.0 | 350.0 | 440.0 | 10.3 |
| 14226.0 | 142.0 | 62.0 | 28.0 | 50.0 | 25.0 | 30.0 | 15.0 | 370.0 | 450.0 | 550.0 | 14.7 |
| 150.0 | 150.0 | 42.0 | 16.0 | 48.0 | 25.0 | 18.0 | 12.0 | 230.0 | 280.0 | 350.0 | 9.9 |
| 160.0 | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 12.0 | 270.0 | 350.0 | 440.0 | 9.6 |
| 160F | 160.0 | 60.0 | 29.0 | 50.0 | 25.0 | 30.0 | 24.0 | 380.0 | 460.0 | 560.0 | 14.7 |
| 200.0 | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 16.0 | 350.0 | 430.0 | 530.0 | 10.7 |
| 200F | 200.0 | 70.0 | 30.0 | 70.0 | 32.0 | 32.0 | 25.0 | 500.0 | 600.0 | 750.0 | 30.7 |
| 216.0 | 216.0 | 58.0 | 25.0 | 72.0 | 35.0 | 27.0 | 18.0 | 480.0 | 570.0 | 700.0 | 21.3 |
| 260.0 | 260.0 | 70.0 | 30.0 | 75.0 | 32.0 | 32.0 | 20.0 | 600.0 | 720.0 | 900.0 | 20.7 |
GZG Scraper Drop Forging Slabhra ordú a roinnt
1. Ag fiosrú agus ag lua (9 Samhain, 2021)
2. Deimhniú líníochta (12 Samhain, 2021)
3. Idirbheartaíocht ama seachadta (12 Samhain, 2021)
4. Sonraigh PI a phlé agus a shíniú (15 Samhain, 2021)
5. Deimhniú íocaíochta (22 Samhain, 2021)
6. Eagraigh táirgeadh (23 Samhain, 2021)
7. Táirge críochnaithe agus pacáil (7 Eanáir, 2022)
Please let us know if you need any help during your inquiry, we are glad to help. And don't worry about our quality, we yet receive any complaint from our clients, GZG Transmission is a trustworthy business partner.
